Front Load Cargo Bike vs. Longtail: Which Cargo Bike Frame Should You Source?

Every cargo bike program starts with the same fork in the road: put the load in front of the rider, or behind. The choice sets the frame architecture, the steering system, the tooling, and the customer the bike is sold to. This guide explains what a front load cargo bike is, how its frame differs structurally from a longtail, and how an OEM buyer should decide between the two.

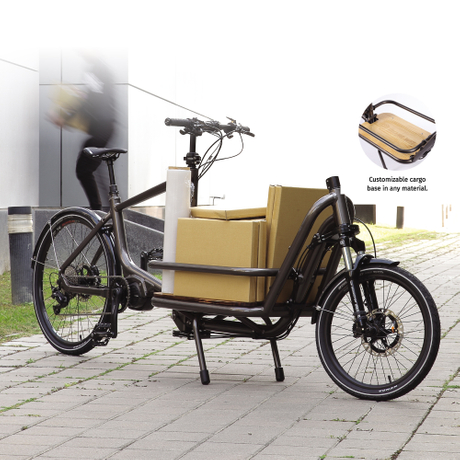

A front load cargo bike is a cargo bicycle that carries its payload in front of the rider — either in a low box between the front wheel and the head tube (the "long john" or box bike) or on a platform above a small front wheel (the "front loader" or bakfiets-style design). The front wheel is pushed forward and steered through a linkage rather than a direct fork, so the load sits low and stays visible to the rider. By contrast, a longtail carries its load behind the rider on an extended rear frame. Huang Wei manufactures aluminum cargo bike frames — two-wheeled and three-wheeled — for OEM programs, backed by 30+ years of TIG welding and ISO 9001 quality management.

What Are the Structural Features of a Front Load Cargo Bike?

How is the front load frame built?

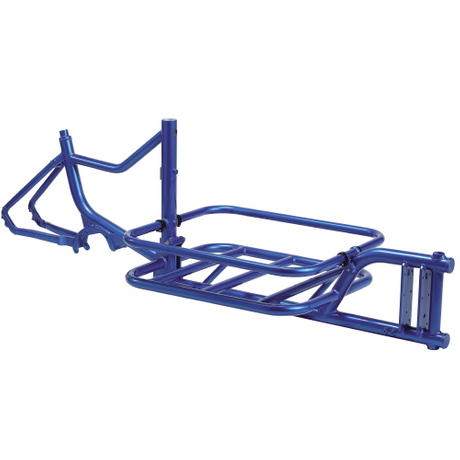

A front load cargo bike frame is defined by one very long main member — a large-section down tube or twin tubes — running from the head tube forward and down to a front sub-frame that holds the small front wheel. The cargo bay sits on top of this beam, between the rider and the front wheel. Because the beam spans the full length of the bay and carries the payload as a bending load, it is the most heavily engineered part of the frame. The head tube and steering linkage mount to the rear end of the beam, and a conventional rear triangle carries the rider.

How does the steering work on a front load cargo bike?

The rider's handlebars turn a steering tube at the usual position, but the front wheel is far ahead. A linkage — a rod, a cable pair, or a pivoting arm under the cargo bay — transfers the steering input forward to the front fork. This lets the load stay low and centered while the bike still steers. The linkage pivots, the front fork mount, and the steering-tube bearing seat are all welded features of the frame and must be aligned precisely, or the bike will feel vague or pull to one side.

Why does a front load bike keep the load low?

The cargo bay floor on a long john sits close to the ground, well below the rider's saddle. A low load lowers the bike's center of gravity, which is what makes a heavily loaded front load bike stable at speed and easy to balance when stopped. It is also why the design suits carrying young children: they sit inside a box with the rider watching them, rather than behind. For a comparison with three-wheeled box bikes, see our 3-wheel cargo bike guide.

What Are the Carrying Advantages of a Front Load Cargo Bike?

What loads does a front load cargo bike carry best?

Bulky, boxy, or awkward loads: crates, parcels, a child or two in a box with a rain canopy, tools, a dog. The cargo bay is a fixed volume the rider can see at all times, so it can be fitted with a locking lid, a bench and harnesses, or a custom insert for a delivery fleet. Because the bay is part of the frame rather than a rack accessory, it supports enclosed bodies and branded boxes in a way a longtail deck cannot.

When is a front load bike better than a longtail?

When volume matters more than footprint. A front load bike carries more bulk per trip, keeps the load in view, and is the standard choice for urban delivery fleets and for families carrying toddlers who are too young for a rear seat. The trade-offs are length — a long john is considerably longer than a longtail — and a steering feel that takes a short period to learn. For rear-load designs and their family-oriented advantages, see our longtail cargo bike guide.

Front Load vs. Longtail: The OEM Sourcing Comparison

Neither format is "better"; they serve different buyers. Many brands eventually offer both, and both can be built on aluminum with the same manufacturing partner. The cargo bike frame design guide covers the shared engineering principles.

What Should an OEM Buyer Check When Sourcing Front Load Cargo Bike Frames?

Why is the main beam weld the make-or-break point?

The long main beam carries the full payload as a bending load between the rider and the front wheel, so the joints at each end of the beam — where it meets the head tube and where it meets the front sub-frame — see the highest stress on the bike. On an aluminum frame these joints are large-section, multi-pass TIG welds. Controlled heat input matters: too much heat distorts the beam and softens the alloy around the weld, too little leaves incomplete fusion. After welding, the whole frame should go through T4 or T6 heat treatment so the alloy regains its strength around every joint. Huang Wei runs TIG welding as its core aluminum process, adds an automated robotic welding system (introduced 2019) for consistent long welds, and performs T4/T6 heat treatment in-house (introduced 2018). Frame load ratings are set and verified per design during development.

Why does steering-linkage alignment depend on the frame shop?

The linkage pivots and fork mount are welded features. If they are out of alignment by even a small amount, the bike will steer unevenly or the linkage will bind. A frame manufacturer with a controlled welding process and post-weld inspection can hold these features to the customer's specification consistently across a production run. Huang Wei welds to the customer's drawing under ISO 9001 quality management, with high-precision welding that meets OEM quality standards. For thin-wall sections where minimal distortion is critical, laser welding is also available — see our guide to laser welding for bicycle frames.

What does a one-stop front load frame program look like?

Because the cargo bay, linkage mounts, and battery cradle are integral to the frame, the most efficient programs involve the manufacturer from the drawing stage. Huang Wei's flow is design and development support, material preparation, welding, T4/T6 heat treatment, grinding, and painting or raw finish, all in-house, with a third plant completed in 2025 for vertically integrated capacity. Aluminum cargo e-bike frames and complete two-wheeled and three-wheeled cargo e-bikes are part of its current OEM range, and samples are available.
