Cargo Bike Frame Design: Structural Considerations for Load Capacity and Urban Logistics

Cargo bikes have moved from niche specialty products to a mainstream urban logistics and family transport solution — driven by last-mile delivery growth, urban congestion policies, and expanding consumer demand for practical, electric-assisted load-carrying alternatives to automobiles. For bicycle brands and OEM buyers developing cargo bike programs, the frame is the most critical engineering element: it must support substantially higher loads than standard bicycles, maintain structural integrity under continuous load cycling, and integrate cargo platform structures without compromising handling or rider safety.

A cargo bike frame is a reinforced bicycle frame structure specifically engineered to support load-carrying applications — incorporating heavier tube wall sections, reinforced junction geometry, integrated cargo platform attachment points, and load-distribution design that manages the structural stress of carrying passengers, goods, or equipment over extended distances and road conditions. Unlike standard bicycle frames, cargo frames must be designed with explicit consideration of load paths, payload capacity, and the structural demands of their intended application environment.

The Core Engineering Challenge: Load vs. Weight vs. Handling

Every cargo bike frame design involves a fundamental engineering tension: higher load capacity requires stronger, heavier structures, but heavier structures reduce efficiency and increase the motor assist load in electric models. Cargo frame designers must resolve this tension through intelligent material selection, optimized tube geometry, and strategic reinforcement — adding structural strength where stress concentrations occur without adding unnecessary weight throughout the frame.

Aluminum alloy is the dominant frame material for modern cargo bikes precisely because it navigates this tension effectively. High-strength aluminum alloys — including 6061 and 7005 grades — provide the structural performance needed for load-carrying applications at significantly lower weight than steel alternatives, while remaining compatible with precision TIG welding and heat treatment processes that optimize post-weld mechanical properties.

2-Wheel vs. 3-Wheel Cargo Frames: Structural Differences That Drive Design Decisions

The choice between 2-wheel and 3-wheel cargo bike configurations is the most fundamental design decision in cargo bike OEM program development, as it shapes virtually every subsequent structural choice.

Key Structural Considerations in Cargo Frame Engineering

Reinforced Load-Bearing Joints

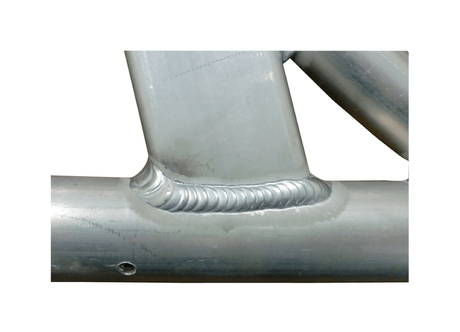

The junction points between the main frame tubes and cargo platform attachment structures are the primary stress concentration zones in a cargo frame. Under loaded conditions, these joints experience combined bending, shear, and torsional forces that are significantly higher than in standard bicycle frames. Quality cargo frame manufacturing addresses these stress concentrations through gusseting, strategic tube wall thickening at junctions, and precision welding techniques that ensure full joint penetration and consistent weld quality at critical points.

Load Distribution Geometry

Effective cargo frame design distributes payload weight efficiently across the frame structure — minimizing localized stress concentrations and ensuring the frame responds predictably under varying load conditions. Front-loading cargo frames (where cargo is positioned ahead of the rider) require particular attention to steering geometry, as forward weight shifts the center of gravity and affects handling. Rear-loading frames must manage the extended rear frame's resistance to flexing under load, particularly over rough road surfaces.

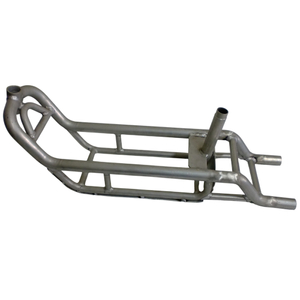

Cargo Platform Integration

The structural interface between the cargo frame and its load-carrying platform — whether a rear rack, front box, or integrated cargo bay — is a critical design detail. Load transfer from the cargo platform to the frame must be distributed across multiple attachment points to avoid stress concentration at any single location. For OEM programs, the cargo platform interface design must be specified early in development to ensure the frame structure accommodates the intended cargo system without compromising structural integrity.

Electric Drive System Integration (e-Cargo Bikes)

Modern cargo e-bikes add motor and battery system integration requirements to the frame engineering brief. Motor mounting points (mid-drive or hub motor configurations) impose specific frame tube sizing and junction requirements. Battery placement — typically within or below the frame's main triangle, or in the cargo bay structure — affects weight distribution and requires frame-level accommodation. For OEM cargo e-bike programs, frame development must be coordinated with drive system specification from the outset.

How to Evaluate Cargo Frame Structural Quality: A Buyer's Checklist

When assessing cargo frame manufacturing quality from an OEM buyer's perspective, the following factors provide a practical evaluation framework:

Huang Wei's Cargo Bike Frame Manufacturing Capability

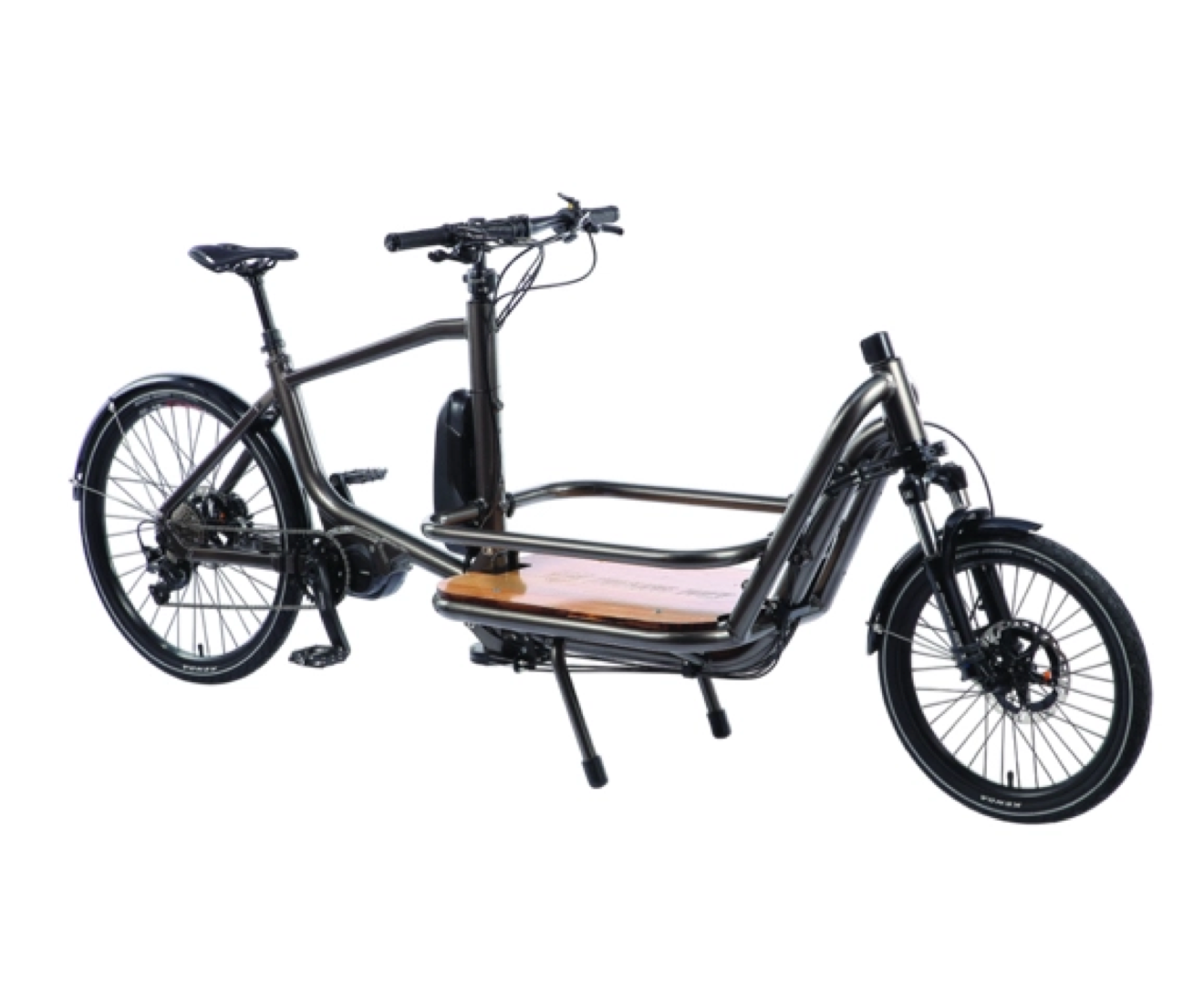

Huang Wei Technology manufactures both complete cargo e-bikes and OEM cargo frame structures for brand development programs. The company's cargo bike program encompasses both 2-wheel and 3-wheel configurations, with aluminum alloy frame construction, precision TIG welding, and integrated manufacturing support from frame development through surface finishing and delivery.

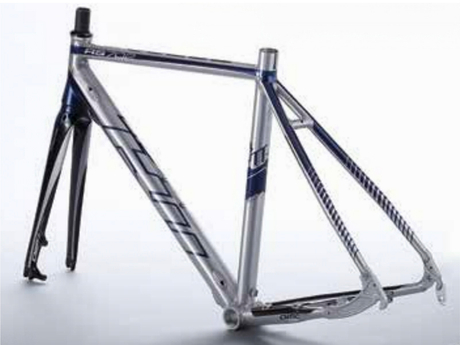

Huang Wei's cargo manufacturing experience is directly supported by the company's broader OEM bicycle frame expertise — including 30+ years of aluminum TIG welding, in-house T4/T6 heat treatment, and a production quality system certified to ISO 9001. The company's track record supplying Giant, European and North American bicycle brands, and structural aluminum components for Taiwan High Speed Rail and the Puyuma Express confirms manufacturing quality at standards directly applicable to cargo frame structural requirements.
