TIG (Tungsten Inert Gas) welding, also known as GTAW, is a precision welding process that uses a non-consumable tungsten electrode and inert gas shielding to produce clean, high-quality welds. It is especially suitable for aluminum alloy components requiring excellent strength, dimensional accuracy, and refined surface quality.
At Huang Wei Technology, TIG welding is performed using precisely controlled welding parameters to achieve consistent weld quality and stable structural performance. We offer both TIG Flat (Smooth) Welding and TIG Fish-Scale Welding, selecting the optimal method based on structural, functional, and aesthetic requirements.

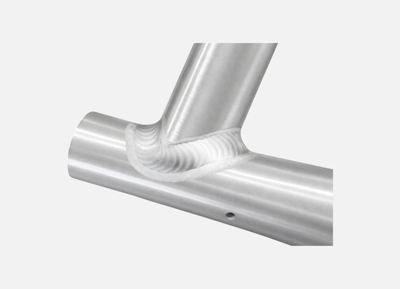

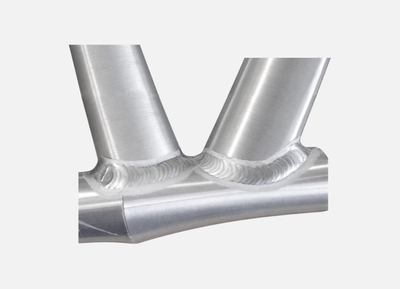

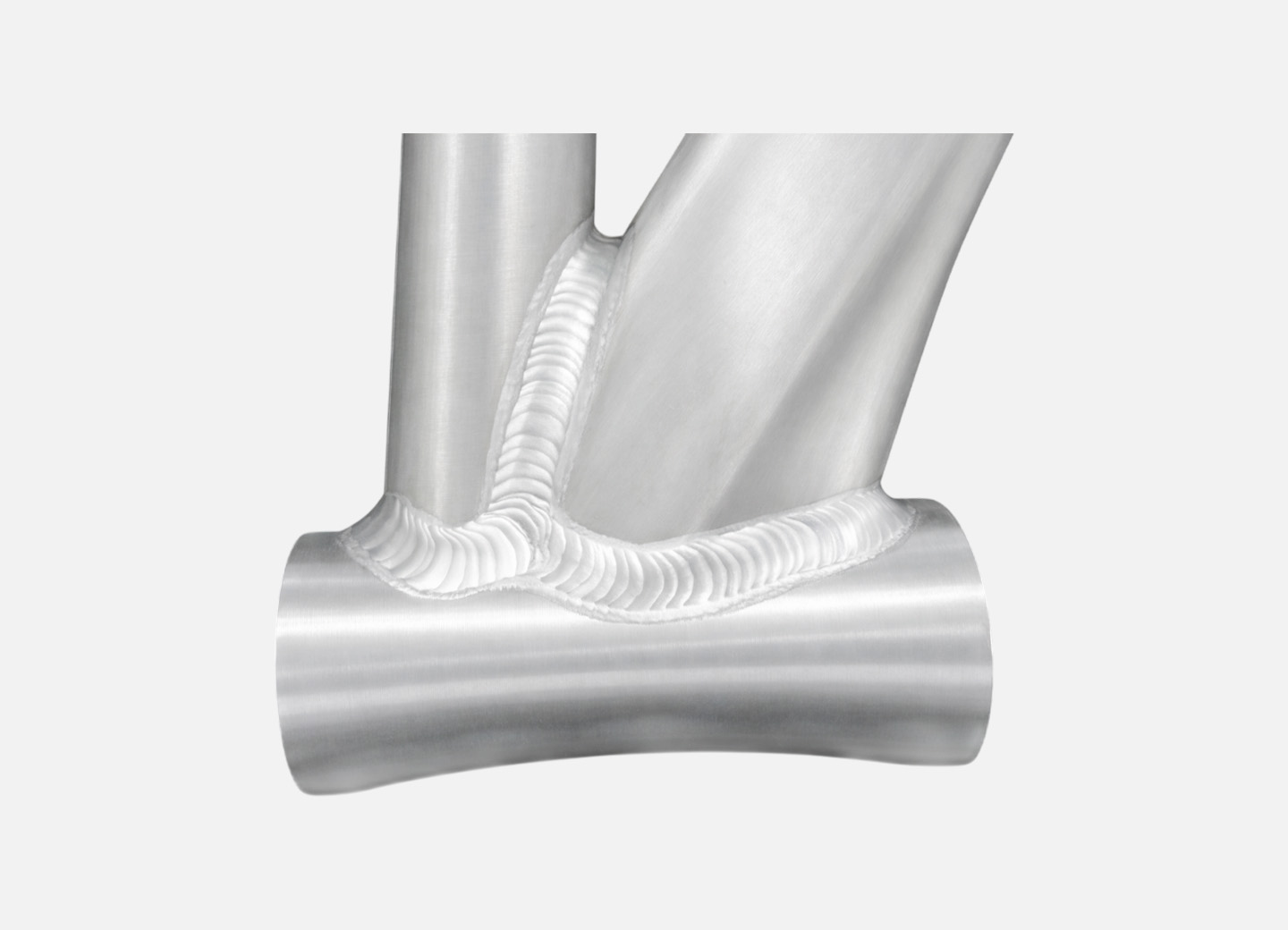

TIG Flat (Smooth) Welding
Process Description
TIG Flat Welding focuses on structural integrity and production stability, delivering smooth, continuous, and uniform weld beads. By carefully managing heat input and welding parameters, we ensure consistent penetration while minimizing distortion and residual stress.
Compared with conventional welding methods, TIG Smooth Welding reduces spatter and thermal impact, maintaining dimensional accuracy and enhancing the overall quality of the welded joints. This process is ideal for aluminum components requiring both mechanical strength and clean surface appearance.
Applicable Materials
Aluminum alloys (6061, 7005, and similar grades). Thin-wall and high-precision structural components.
Key Advantages
Smooth and uniform weld appearance. Precise heat control reduces distortion and residual stress.
Stable and repeatable welding quality for mass production. Compatible with subsequent surface treatments and finishing processes.
Typical Applications
Bicycle and e-bike frame
structural components
Industrial aluminum
brackets and connectors
Medical and mobility
equipment structures
High-end OEM / ODM
customized products

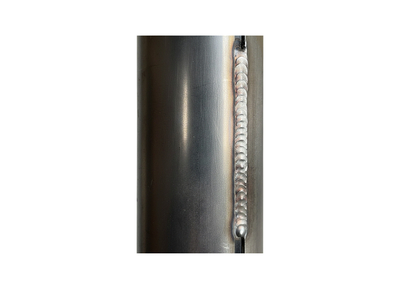

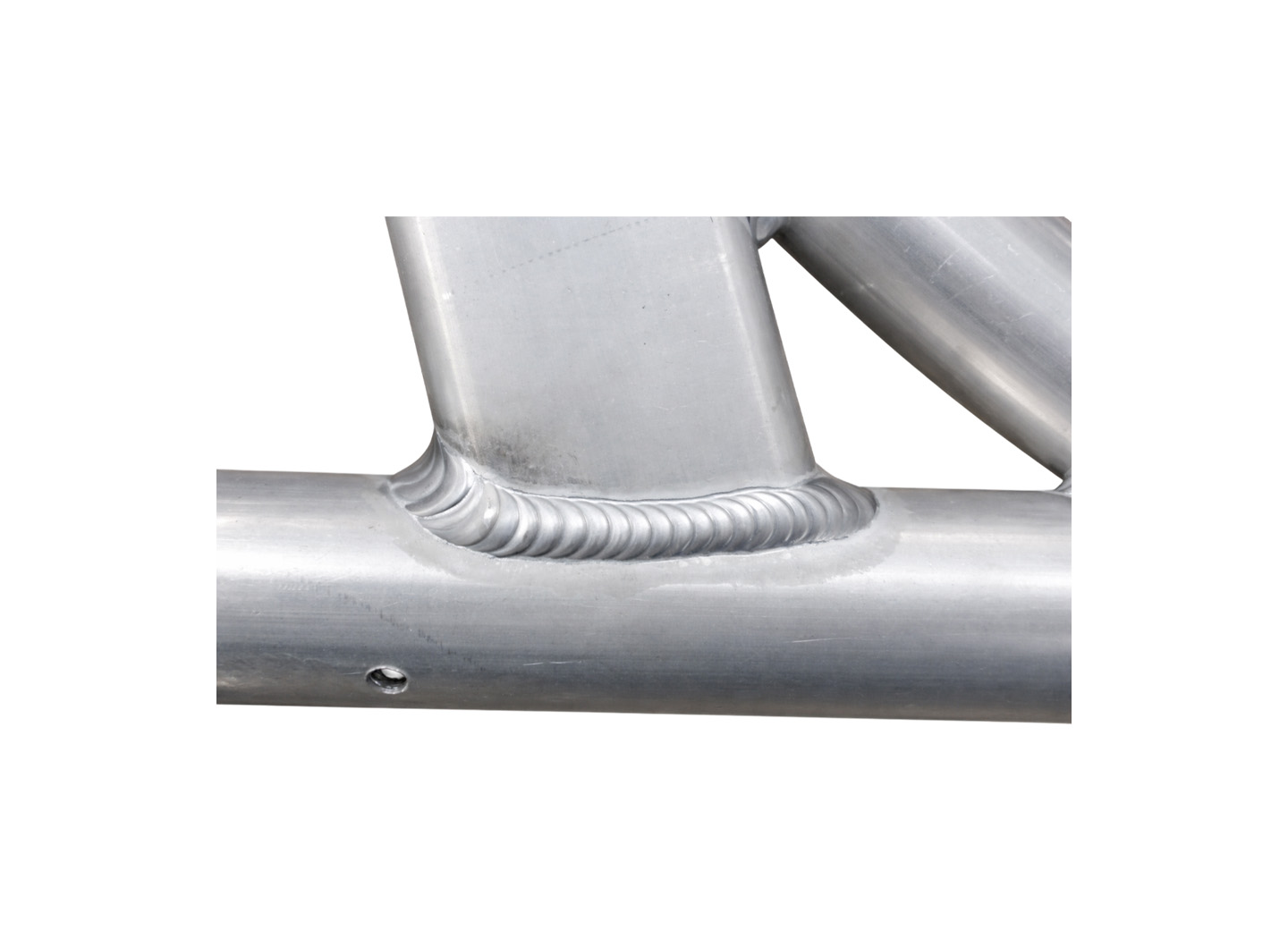

TIG Fish-Scale Welding
Process Description
TIG Fish-Scale Welding is an advanced TIG welding technique characterized by its distinctive, evenly overlapped ripple pattern—resembling fish scales—formed through precise control of welding current and torch movement.
Beyond its refined appearance, this method delivers excellent weld integrity and consistency. Controlled penetration and stable heat distribution ensure reliable joint strength while maintaining visual consistency. It is particularly suitable for high-end aluminum alloy applications where both aesthetics and structural performance matter.
Key Advantages
Visually refined weld appearance with uniform, rhythmic patterns. High weld consistency and density, minimizing porosity and defects.
Improved structural strength and fatigue resistance through even heat distribution.
Well-suited for premium aluminum alloys such as 6061 and 7005.
Typical Applications
Bicycle and e-bike frame
structural components
Industrial aluminum
brackets and connectors
Medical and mobility
equipment structures
High-end OEM / ODM
customized products
Integrated TIG Welding Services
Supported Aluminum Alloys 6061, 7005, and other commonly used aluminum alloys Customized Welding Process Selection TIG Flat or Fish-Scale welding selected based on material thickness, structural design, and application requirements
Fixture Design & Distortion Control
Customized fixture systems ensure dimensional accuracy and repeatable weld quality. Post-Weld Heat Treatment Integration (T4 / T6).
Solution heat treatment and aging processes can be integrated to restore and enhance mechanical properties after welding.
Quality Inspection & Process Control
Weld appearance inspection, strength verification, and dimensional inspection are conducted to ensure consistent quality.
One-Stop OEM / ODM Manufacturing Support
From prototyping and pilot runs to full-scale production, we provide complete manufacturing integration.
FAQ
FAQ
Is T4&T6 Heat Treatment necessary after TIG welding?
Highly recommended, especially for safety-critical structures. TIG welding creates a Heat Affected Zone (HAZ). T4&T6 Heat Treatment is the necessary step to restore and enhance the material's properties, ensuring the final product can withstand long-term stress and fatigue—a key requirement for standards like THSR.
What is the technical advantage of "Scales Welding" in TIG welding?
Scales Welding is the hallmark of a skilled TIG welder. Its advantages are: 1. Quality Assurance: The uniform pattern is visual proof of the technician's skill and stable melt pool control. 2. Stress Management: It helps better distribute and manage shrinkage stresses during the welding process.
How does the cost-effectiveness of TIG welding compare?
TIG welding's cost-effectiveness lies in its superior quality and low defect rate. While slower than Laser Welding, its reliability and ease of inspection in high-strength structures reduce costly rework and failure, making it the highest value choice for safety-critical components.
Does your next project demand the industry gold standard in TIG welding craftsmanship?
