Laser Welding vs TIG Welding for Thin-Wall Structures: An OEM Comparison

Thin-wall tubing is where welding decisions get expensive. Too much heat warps the tube or burns through; too little leaves a weak joint. For OEM buyers specifying frames and precision assemblies, the choice between laser welding and TIG welding directly affects distortion, throughput, and unit cost. This guide compares the two processes for thin-wall work and explains how a manufacturer with both capabilities decides which to use.

Laser welding and TIG welding are both precision joining processes suited to thin-wall structures, but they differ in heat input and speed. Laser welding uses a tightly focused beam to deliver very concentrated energy, producing a narrow weld with a small heat-affected zone and low distortion at high speed. TIG (tungsten inert gas) welding uses an electric arc and is slower but highly controllable, giving skilled operators fine command over the weld pool on delicate tubing. The best choice depends on wall thickness, material, joint design, and production volume.

How Do Laser and TIG Welding Differ on Thin-Wall Tubing?

The core trade-off is between concentrated speed and hands-on control.

Which process puts less heat into the part?

Laser welding generally introduces less total heat into a thin-wall component. Because the beam is focused into a small spot, the energy is concentrated exactly where the joint forms, so the surrounding material stays cooler and the heat-affected zone stays narrow. That translates into less thermal distortion — a major advantage when a tube's straightness and roundness must be held tightly. TIG welding puts more heat into the broader joint area, which a skilled welder manages by controlling amperage, travel speed, and filler; on very thin walls this manual control is precisely what prevents burn-through, but it demands high operator skill.

Which process is faster for production volume?

Laser welding is typically faster and is well suited to automated, higher-volume production because the concentrated beam completes each joint quickly and can be integrated into robotic systems. TIG welding is slower per joint because it relies on operator-guided arc control, but it needs less fixturing investment and adapts easily to varied or low-volume work. For an OEM program, the crossover point depends on batch size: high, repeatable volumes favor laser; complex, lower-volume, or highly customized frames often favor TIG.

Which Process Is Right for Your Application?

Neither process is universally superior — the right answer follows the frame design and program.

When should an OEM buyer choose laser welding?

Laser welding is a strong fit when distortion control is critical, when joints are repeatable across a large batch, and when the design allows tight, consistent fit-up. Its narrow weld and low heat input suit precision thin-wall assemblies where dimensional accuracy drives quality. Laser welding also applies across multiple materials — Huang Wei uses it on aluminum, steel, and iron — making it versatile for a mixed-material lineup. The trade-off is that laser welding requires precise joint preparation, because the focused beam is less forgiving of gaps than an arc process.

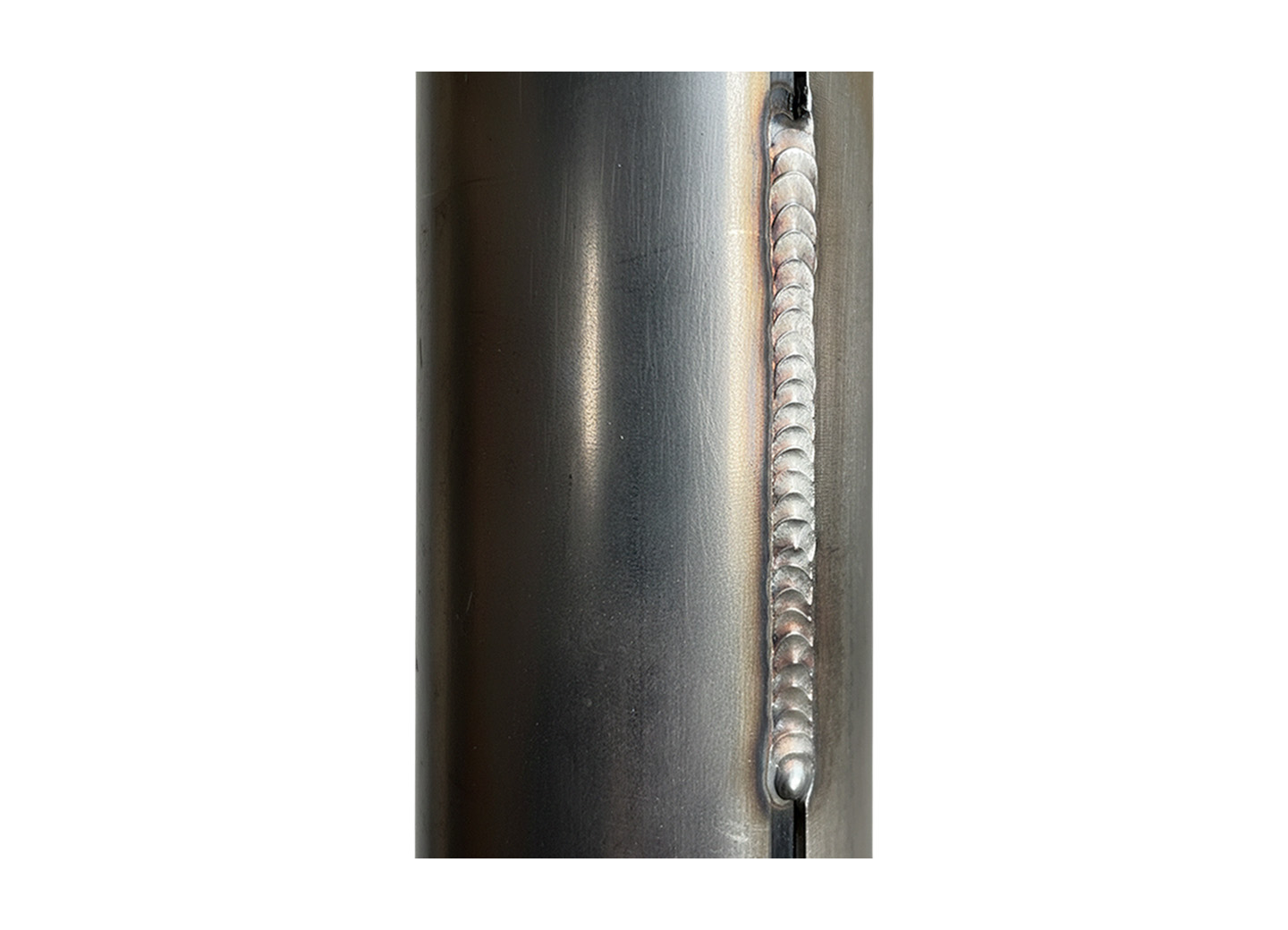

When is TIG welding the better choice?

TIG welding is often the better choice for thin-wall Chromoly steel frames, custom geometries, small-to-medium batches, and joints where an operator's judgment adds value. It remains the mainstream process for quality steel frame building and is Huang Wei's primary process for Chromoly. TIG's controllability handles varied tube diameters and wall thicknesses without retooling, which is why it stays central to bespoke and premium frame work even as automated processes grow. Many lineups use both: TIG for complex or low-volume models, laser for high-volume precision runs.

Can one manufacturer offer both processes?

Yes — and that flexibility is the real advantage for buyers. When a single manufacturer runs both laser and TIG welding, the joining method is chosen to fit the frame design rather than forced to match a limited capability. Huang Wei operates four welding processes — Smooth, TIG, Brazing, and Laser welding — within a one-stop OEM flow, so material, wall thickness, and volume all feed one sourcing decision. With more than 30 years of welding experience and ISO 9001 quality management, the process recommendation is grounded in what the application actually needs.

Frequently Asked Questions

Q: What is the difference between laser welding and TIG welding?

A: Laser welding uses a focused beam to deliver concentrated energy, producing a narrow weld, small heat-affected zone, low distortion, and high speed — well suited to automated, higher-volume work. TIG welding uses an electric arc guided by a skilled operator, offering fine control over the weld pool but at slower speed. For thin-wall structures, laser welding minimizes heat and distortion, while TIG welding provides hands-on control that prevents burn-through on delicate tubing. Huang Wei offers both and matches the process to the application.

Q: Which is better for thin-wall tubing, laser or TIG welding?

A: It depends on the job. Laser welding puts less heat into the part and controls distortion well, making it strong for high-volume precision assemblies with consistent fit-up. TIG welding gives an operator direct control over heat input, which is ideal for thin-wall Chromoly frames, custom geometries, and small-to-medium batches. Many OEM lineups use both. A manufacturer running both processes, like Huang Wei, can recommend the right method based on wall thickness, material, and production volume.

Q: Does laser welding work on aluminum and steel?

A: Yes. Laser welding is a multi-material process. Huang Wei applies laser welding to aluminum, steel, and iron, which makes it versatile for lineups that span different frame materials. The main requirement is precise joint preparation, because the focused beam is less tolerant of gaps than an arc process. For applications where fit-up varies or geometries are complex, TIG welding may be the more forgiving choice — one reason Huang Wei maintains both capabilities in-house.

Q: Can Huang Wei weld thin-wall frames on an OEM basis?

A: Yes. Huang Wei provides OEM manufacturing with four welding processes — Smooth, TIG, Brazing, and Laser welding — under one roof, backed by ISO 9001 quality management and 30+ years of experience as a Giant OEM aluminum frame supplier. This lets the joining method be matched to each frame's material and design rather than forced to fit a single process. Samples are available, and process recommendations are confirmed with the engineering team for each program.
