For bicycle brands sourcing OEM frame production and for procurement teams evaluating manufacturing partners, understanding the welding process behind the frame matters as much as the material itself. The welding method determines joint strength, weld appearance, dimensional consistency, and ultimately how reliably the frame performs over its service life. Among all available welding processes used in modern bicycle frame manufacturing, TIG welding — Tungsten Inert Gas welding — has established itself as the industry standard.
TIG welding (Tungsten Inert Gas welding, also known as GTAW — Gas Tungsten Arc Welding) is a precision arc welding process in which a non-consumable tungsten electrode generates the arc, and filler material is added separately by hand or mechanically. The process uses an inert shielding gas — typically argon — to protect the weld pool from atmospheric contamination. TIG welding is characterized by its precise heat control, clean weld bead appearance, and suitability for thin-wall materials, making it the preferred process for high-performance structural components including bicycle frames.
This article explains what TIG welding is, why it is specifically suited to bicycle frame fabrication, how it applies to both aluminum and chromoly steel (Cr-Mo) frame programs, and what to look for when evaluating an OEM manufacturer's TIG welding capability.

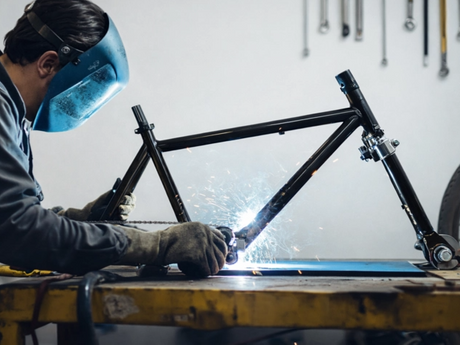

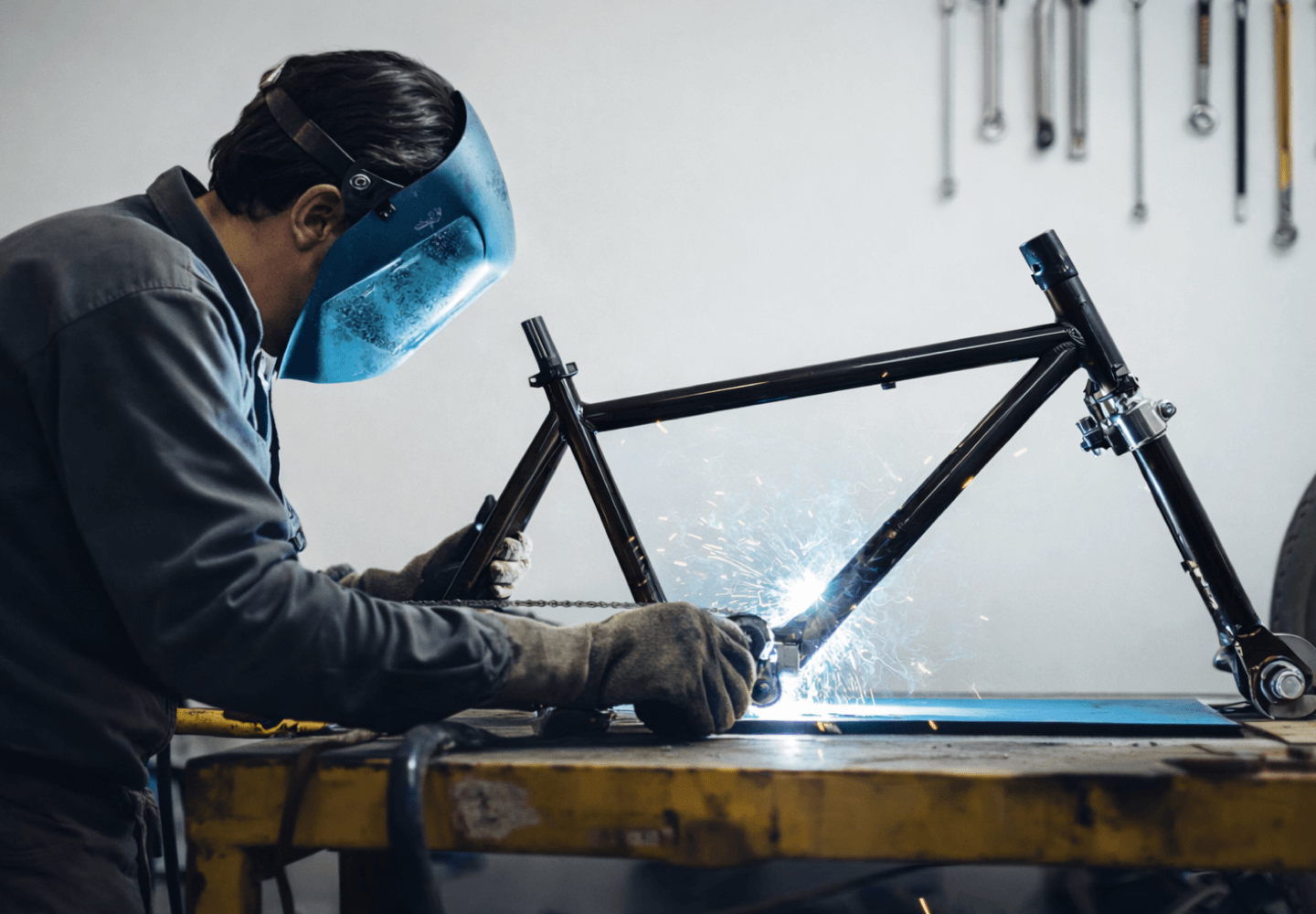

TIG welding uses a tungsten electrode to create an electric arc that melts the base metal. Unlike MIG welding — where a consumable wire electrode is fed automatically — TIG welding requires the welder to control the arc with one hand and feed filler rod with the other, while simultaneously managing heat input through a foot or hand pedal. This manual coordination makes TIG welding more technically demanding, but it also gives the welder a level of precision and control that automated processes cannot replicate in complex joint geometries.
The inert shielding gas (argon, or argon-helium mixtures for specific applications) prevents oxidation and atmospheric contamination during welding, producing consistently clean weld surfaces. For bicycle frames — where the finished weld is often visible and forms part of the product's aesthetic identity — this clean surface appearance is a critical quality attribute.
| TIG Welding Characteristic | What It Means for Bicycle Frames |
|---|---|
| Non-consumable tungsten electrode | Precise arc control, no electrode contamination of weld pool |
| Separate filler rod addition | Welder controls heat and fill independently — precise joint geometry |
| Inert gas shielding (argon) | Clean weld surface, no spatter, no oxidation scale |
| Foot/hand amperage control | Heat modulation on thin walls — prevents burn-through on tube sections |
| Slow deposition rate | Higher quality per joint — preferred for structural bicycle frame tubes |
Bicycle frames present a specific set of welding challenges that make TIG welding the most practical and widely adopted process in quality OEM production. Understanding these challenges explains why manufacturers with serious quality commitments invest in TIG welding capability.
Modern bicycle frames use relatively thin-wall aluminum or chromoly steel tubes — typically between 0.8mm and 2.5mm wall thickness depending on the tube section and alloy grade. Thin walls are vulnerable to burn-through and warping when welding heat is not carefully controlled. TIG welding's precise amperage control — including the ability to taper heat input at the end of a weld to avoid craters and stress concentrations — makes it uniquely suited to these thin-wall applications. Other processes with higher heat input or less precise control introduce deformation risk that compromises frame geometry and performance.
For many bicycle brands, the weld bead appearance is part of the product's quality signal to end consumers. The characteristic TIG weld bead — sometimes called a "fish-scale" pattern due to its overlapping arc — is recognized globally as a mark of skilled craftsmanship. Huang Wei applies fish-scale TIG welding across its aluminum and chromoly frame programs, producing clean, consistent weld beads that meet the visual standards of international bicycle brands including Giant and European and North American OEM clients.
Bicycle frames include multiple tube intersection joints — head tube, bottom bracket, seat tube, and chainstay/seatstay joints — each requiring different angles, access orientations, and heat management strategies. TIG welding's flexibility allows skilled welders to navigate these complex geometries with consistent quality, while adapting technique to each joint's specific requirements. This adaptability is difficult to replicate with fully automated processes on complex custom or low-volume programs.

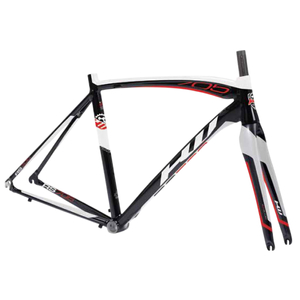

Aluminum alloy — specifically 6061 and 7005 grades — is the dominant material in modern OEM bicycle frame production, and TIG welding is the primary joining process for aluminum frame fabrication. Aluminum presents specific welding challenges: its high thermal conductivity means heat dissipates rapidly, requiring precise arc management to maintain consistent fusion; its natural oxide layer (aluminum oxide) has a much higher melting point than the base metal and must be removed by the AC current cleaning action during welding; and its tendency to lose strength in the heat-affected zone (HAZ) means post-weld heat treatment is important for structural recovery.
Huang Wei's aluminum TIG welding process addresses these characteristics through controlled inter-pass temperatures, precise shielding gas management, and integration with in-house T4/T6 heat treatment — restoring structural strength to welded joints and ensuring frames meet the mechanical performance requirements of OEM programs.
Chromoly steel (Cr-Mo, chromium-molybdenum alloy steel) is experiencing renewed interest from international bicycle brands in 2026 — driven by demand for premium custom road programs, touring bikes, and product lines where ride feel and frame repairability are priorities. TIG welding is the industry-standard process for chromoly frame fabrication, for several practical reasons.
Chromoly steel's alloying elements — chromium and molybdenum — improve its hardenability compared to plain carbon steel. This means the heat-affected zone (HAZ) around a weld can become harder and more brittle than the base metal if cooling is too rapid. TIG welding's controlled, low-heat-input process reduces HAZ extent compared to higher-heat processes, and its slow bead progression gives the welder full control over thermal management throughout each joint.
| Factor | Chromoly (Cr-Mo) TIG Welding | Aluminum TIG Welding |
|---|---|---|
| Shielding gas | Argon (standard) | Argon or argon-helium mix |
| HAZ sensitivity | Moderate — controlled with low heat input | High — heat spreads rapidly |
| Post-weld treatment | Stress relief (optional for thin-wall frames) | T4/T6 heat treatment recommended |
| Weld bead aesthetics | Fish-scale or smooth finish options | Fish-scale or smooth finish options |
| Filler material | ER70S or equivalent Cr-Mo filler | ER4043 or ER5356 (alloy specific) |
| Repairability | Field-repairable by any competent TIG welder | Requires specialized aluminum TIG capability |
As a confirmed 2026 expansion direction, Huang Wei supports chromoly steel frame fabrication using TIG welding — applying the same process expertise developed over 30+ years of aluminum frame manufacturing to Cr-Mo frame programs. For specific program requirements and material combinations, contact Huang Wei's sales team to discuss scope and capability alignment.
When evaluating OEM manufacturing partners or comparing fabrication approaches, understanding how TIG welding positions relative to other processes helps buyers make informed sourcing decisions.
| Welding Process | Best Application for Bicycle Frames | Limitations vs. TIG |
|---|---|---|
| TIG Welding | High-quality aluminum and Cr-Mo frames, precision joints, visible welds, custom programs | Slower deposition rate — higher skilled labor requirement |
| Smooth Welding | Head tube and select aesthetic joints — smooth, flush surface with no visible bead | Specialized application — not suitable for all frame joints |
| Brazing | Multi-material joints, lugged steel frames, repairs | Lower joint strength at elevated temps; limited to specific frame designs |

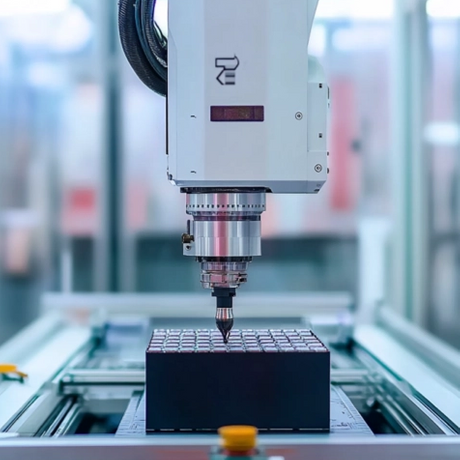

| Laser Welding | Thin-wall precision parts, minimal HAZ, high production speed for suitable geometries | Higher capital equipment cost; geometry access constraints on complex joints |
Huang Wei operates all four welding process capabilities — TIG, Smooth, Brazing, and Laser Welding — allowing the selection of the most appropriate process for each frame design, material, and production requirement. This multi-process capability is a key differentiator in supporting diverse OEM programs from a single manufacturing partner.
Huang Wei Technology has applied TIG welding expertise to bicycle frame manufacturing since its founding in 1992 — building over 30 years of process knowledge in aluminum alloy frame fabrication and expanding this capability to chromoly steel structures as a 2026 priority direction. The company's TIG welding operations are supported by an ISO 9001-certified quality management system, ensuring process consistency, dimensional accuracy, and repeatable weld quality across production batches.
Key manufacturing capabilities supporting Huang Wei's TIG welding programs:
In-house T4/T6 heat treatment for aluminum frames — restoring post-weld structural properties without outsourcing
Automated robotic TIG welding systems (introduced 2019) for consistent, high-volume production programs
Manual TIG welding for complex geometries, custom programs, and low-volume OEM development runs
One-stop OEM service: from design assistance through welding, heat treatment, surface finishing, and delivery
Track record with clients including Giant (world's largest bicycle brand), European and North American bicycle brands, and Taiwan High Speed Rail (THSR)
TIG welding provides superior precision and control for the thin-wall tube structures used in bicycle frames. Its non-consumable tungsten electrode and separate filler rod addition allow the welder to independently manage arc heat and filler volume — critical for preventing burn-through on thin sections and achieving consistent joint geometry across complex frame intersections. The resulting weld quality, appearance, and dimensional accuracy make TIG welding the standard choice for quality OEM bicycle frame manufacturing.
Yes. TIG welding is the standard process for both aluminum alloy and chromoly steel (Cr-Mo) bicycle frame fabrication, though the specific parameters — shielding gas composition, filler material, and thermal management — differ between the two materials. For aluminum, argon shielding and T4/T6 post-weld heat treatment are typically applied. For chromoly, TIG welding's low heat input helps manage the heat-affected zone and maintain material integrity across the joint.
TIG fish-scale welding (TIG魚鱗焊) produces the characteristic overlapping arc pattern that is widely recognized as a mark of skilled manual TIG welding — visible on the frame surface and associated with high-quality craftsmanship in premium bicycle programs. Smooth welding produces a flush, visually seamless joint surface with no raised bead, typically applied to head tube areas or designs where a clean, uniform aesthetic is specified. Both processes are available at Huang Wei and are selected based on design requirements and client preferences.
Huang Wei operates both automated robotic TIG welding systems and manual TIG welding capability. Automated systems — introduced in 2019 — support high-volume, repeatable production programs where consistent parameters across large batches are the priority. Manual TIG welding is applied for complex joint geometries, custom frame development programs, and applications where the welder's adaptive judgment is necessary to achieve the required quality. Both approaches are supported by an ISO 9001-certified production system.
Aluminum alloy frames lose a portion of their base material strength in the heat-affected zone (HAZ) surrounding TIG welds. T6 heat treatment — solution heat treatment followed by artificial aging — is applied after welding to restore this structural strength and achieve consistent mechanical properties across the frame. Huang Wei's in-house T4/T6 heat treatment capability ensures this post-weld process is integrated into the production flow, eliminating outsourcing delays and maintaining quality control throughout the full manufacturing sequence.
