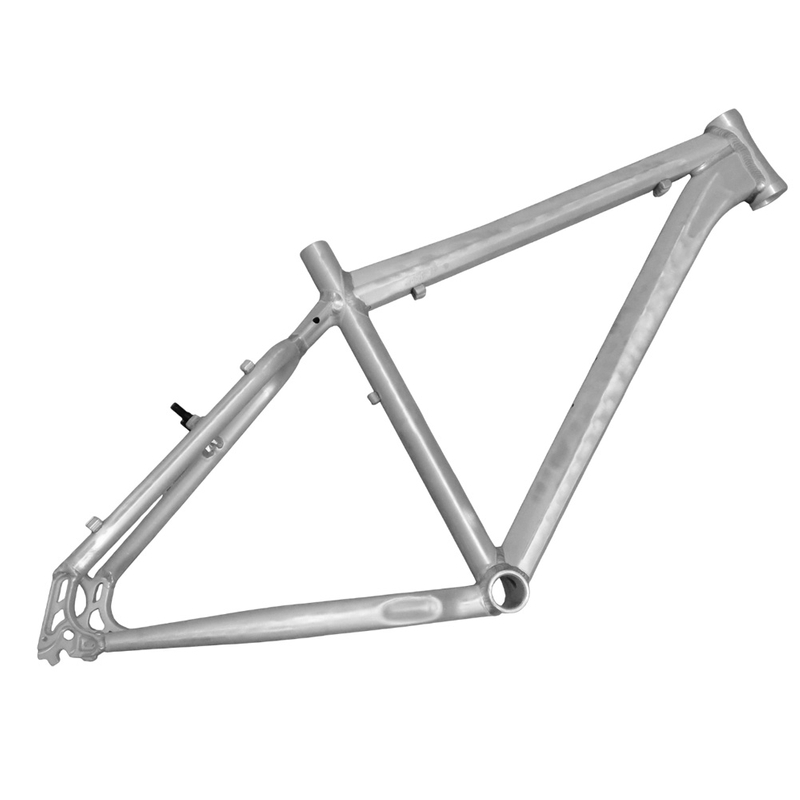

Core Specifications and Geometry
- Material Construction: Select between high-modulus carbon fiber layups for ultimate weight savings or aerospace-grade aluminum alloy for impact resilience.
- Wheel Compatibility: Precision engineered clearances accommodating both 27.5-inch and 29-inch wheelsets, with ample room for aggressive, wide-profile mud tires.
- Suspension Travel: Optimized geometry designed around 100mm to 160mm fork travel, adaptable depending on the specific riding discipline.
- Drivetrain Integration: Fully compatible with modern 1x specific drivetrains, featuring guided internal cable routing systems to prevent rattling.
- Bottom Bracket: Available in threaded or press-fit configurations, machined to exacting tolerances to eliminate creaking under heavy pedaling loads.
- Dropouts: Standardized Boost spacing (148x12mm) for increased rear wheel stiffness, ensuring precise tracking through rough corners.
Advanced Manufacturing Processes
The creation of this mountain bike frame relies on sophisticated fabrication techniques that elevate the raw materials into a cohesive, trail-ready skeleton.
Hydroforming and Tube Shaping
For aluminum variants, extreme fluid pressure shapes the metal from the inside out, creating complex, variable-thickness profiles. This technique removes excess material where it is not needed and reinforces critical stress junctions like the head tube and bottom bracket shell. Tapping the down tube produces a distinct, solid acoustic feedback, indicating the precise wall thickness control achieved during forming.
EPS Inner Molding Technology
Carbon models utilize an Expandable Polystyrene (EPS) mandrel during the thermal curing process. This ensures the internal walls of the frame remain completely smooth, free from wrinkles, voids, or excess resin pools that add unnecessary weight. The result is a lighter overall structure with incredibly consistent strength throughout every millimeter of the frame.
Precision Welding
Aluminum frames feature double-pass, flat-sanded welds. The joints appear almost organic, mimicking the smooth, flowing transitions typically only seen in composite materials. This careful thermal management during welding prevents metal fatigue in the heat-affected zones, ensuring long-lasting durability.
Engineered for Diverse Trail Conditions
Whether navigating tight, twisting switchbacks or descending steep, technical rock gardens, the frame's modern geometry dictates the ride experience. A slacker head angle paired with a steeper seat tube angle places the rider in an optimal, centered position for both efficient, lung-busting climbs and confident, gravity-fed descents.
For Cross-Country (XC) applications, the chassis emphasizes lateral stiffness and minimal weight, translating every pedal stroke into immediate forward momentum. Trail and Enduro configurations feature reinforced gussets and altered kinematics to handle larger impacts, drop-offs, and aggressive cornering forces. The lowered center of gravity allows riders to push through dirt berms with predictable traction and stability.
Stringent Testing and Validation
Before reaching the assembly line, these frames undergo an exhausting battery of physical tests. Surpassing established ISO and EN safety standards, the structures are subjected to hundreds of thousands of cycles on pneumatic fatigue testing jigs. The rhythmic, heavy thud of the drop-test anvil simulates extreme impact scenarios, ensuring the head tube, down tube, and chainstays can withstand forces far exceeding typical trail use. This rigorous validation process guarantees that the frame will maintain its structural integrity through seasons of aggressive riding, providing absolute peace of mind for brand partners and end-users alike.
Comprehensive Customization and Support
Understanding that brand identity is crucial in the competitive cycling market, we offer extensive, flexible manufacturing solutions. Brand partners can specify unique paint schemes matched precisely to Pantone colors, custom decal applications baked under the clear coat, and even slight geometry modifications to align with their specific target audience and regional riding styles.
From the initial design phase to the final protective coat application, every step can be tailored to meet specific market demands. Furthermore, a comprehensive, long-term warranty program backs every unit produced. A dedicated global support network ensures that any technical inquiries, replacement part needs, or after-sales requests are addressed promptly, minimizing risk for volume purchasers and reinforcing brand reliability across the globe.
